| Number Of Channels |
12 Channels |
| Brand |

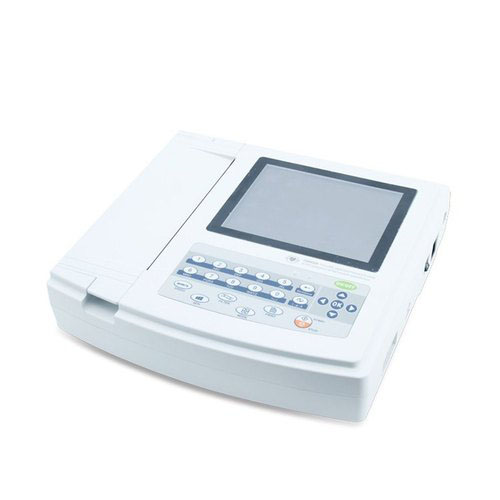

Contec |
| Model Name/Number |
1200G |
| Machine Type |
Digital |
| Weight |
3.2 kg |
| CMRR |
>60 dB, >100 dB(add filter) |
| Frequency Response |
0.05Hz ~ 150Hz (-3dB~+0.4dB) |
| Time Constant |
More Than Or Equal To 3.2 s |
| Calibration Voltage |
1 mV |
| Input Circuit Current |
Less Than Or Equal To 50 nA |
| Input Impedance |
More Than Or Equal To 50 mOhm |
| Sampling Accuracy |
12-bit |
| Paper Size |
210 mm(W) x 20 m(L) |
| Sampling Frequency |
1000 Hz |
| Voltage |
100 V~240 V |
| Frequency |
50/60Hz |
| Waterproof Degree |
IPX0 |
| Working Mode |
Continuous Working |
| Working Temperature |
5-40 DegreeC |
| Working Relative Humidity |
25%~95%(Non-condensing) |
| Working Atmospheric Pressure |
700 hPa~1060 hPa |
| Transport And Storage Temperature |
-40 To +55 DegreeC |
| Transport And Storage Atmospheric pressure |
500 hPa~1060 hPa |
| Dimension |
340 mm(L) x 320 mm(W) x 85 mm(H) |
