Product Information

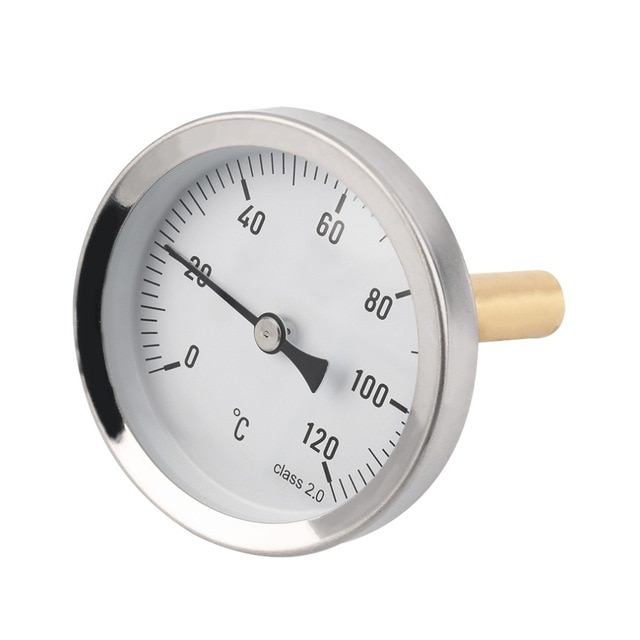

BIMETALLIC (HORIZONTAL)
· Dial looks white powder coated with black numberand graduations
· Black painted aluminium sheet pointer
· Casing in mild steel, s. steel, without flange,with back flange, black powder coated, nickel plated
|
SPECIFICATIONS |
|
Accuracy |
+2%, working within 1 scale division |
|
Connection |
3/8" B.S.P., V2" B.S.P., Fixed & as |
|
Dial size |
1.25", 1.5", 2", 2.5", 3", 4", 6" |
|
Material |
Mild steel or Stainless steel |
|
Range |
-40 to 40, -20 to 60, -10 to 50, 0 to 50, 60, 100, 120, 150, 200, 250, 300, 400, 500, 600°C or as required |
|
Stem |
M.S., S.S, 6mm, 9.5mm, 12.5mm |
|
Stem Length |
2", 2.5", 3", 4", 6", 9", 12" or as required |
BIMETALLIC (VERTICAL)
· Dial looks white powder coated with black number and graduations
· Black painted aluminium sheet pointer
· Casing in mild steel. s. steel, without flange, black powder coated.
|
SPECIFICATIONS |
|
Accuracy |
+2%, working within 1 scale division |
|
Connection |
3/8" B.S.P., 2" B.S.P., or as required |
|
Dial size |
2^1/2", 4", 6" |
|
Material |
Mild steel or Stainless steel |
|
Range |
-40 to 40, -20 to 60, -10 to 50, 0 to 50, 60, 100, 120, 150, 200, 250, 300, 400, 500, 600°C or as required |
|
Stem |
M.S., S.S, 6mm, 9.5mm |
|
Stem Length |
2", 2½", 3", 4", 6".9", 12" or as required |

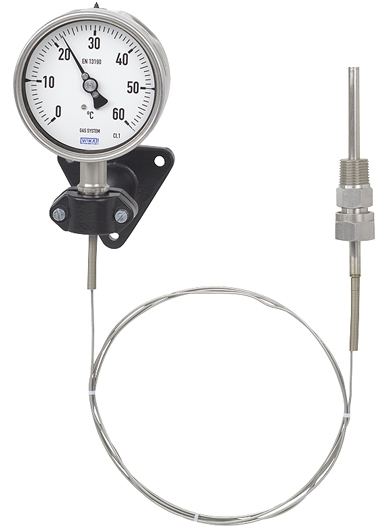

CAPILLARY DIAL (VAPOUR PRESSURE)
· Dial looks white powder coated with black number and graduations
· Black painted aluminium sheet pointer
· Casing in mild steel, s. steel. aluminium, front flange, back flange, black & grey powder coated colour
|
SPECIFICATIONS |
|
Accuracy |
12%, working within 1 scale division |
|
Capillary |
P.V.C/Copper, 2 Meter, 3 Meter, or as required |
|
Connection |
3/8" B.S.P., ½" B.S.P., or as required |
|
Dial size |
4", 6" |
|
Material |
Mild steel, Stainless steel or Aluminium |
|
Range |
0 to 50, 60, 100, 120, 150, 200, 250, 300, 400°C or as required |
